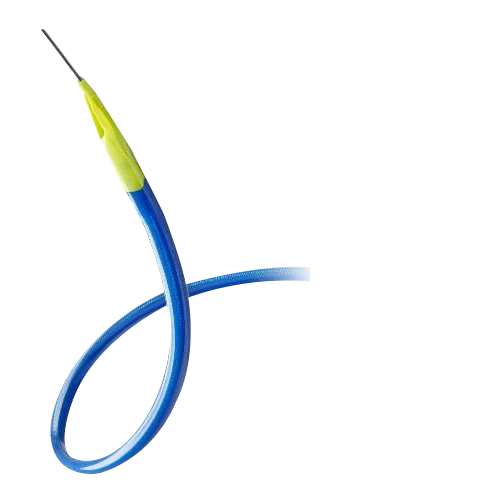

TRANS ASPIRATION CATHETER
Description :
TRANS Aspiration Catheter is an innovative aspiration catheter designed to offer a balance between crossing performance, kink resistance and thrombus-aspiration capability.
Dedicated tip design with radiopaque marker
- Excellent crossability while providing atraumatic and effective aspiration
- Ensures reliable fluoroscopic visibility
Braided shaft with hydrophilic coating and pre-loaded stiffening style
- Excellent pushability and kink resistance
- Easy navigation through tortuous anatomies
Large aspiration lumen
- Constant, high-performance aspiration throughout the procedure
Item Specifications
- Choice of three sizes (6 Fr and 7 Fr guide catheter compatibility) for different peripheral applications
Ordering Information
| Sr.No | Product | Product Code | Size | Size |
|---|---|---|---|---|
| 1 | TRANS Aspiration Catheter | TRAC670 | 6 Fr | I.D > 0.070* / 1.780mm |
| 2 | TRANS Aspiration Catheter | TRAC780 | 7 Fr | I.D > 0.080* / 2.030mm |
General Specifications
| Usable Length | 140 cm |
|---|---|
| Distal top hole Length | 4mm for 6 and 7 Fr, 7mm for 8Fr |
| Rapid exchange Segment | 23cm |
| Radiopaque Marker | mm located at 4mm from the tip |
| Positioning Marker | 10cm = single white mark located at 90cm from distal tip |
| Guidewire Compatibility | Maximum diameter0.014″ (0.36mm) |
| Coating | Hydrophilic |
