Racer
Sirolimus Eluting Coronary Stent System

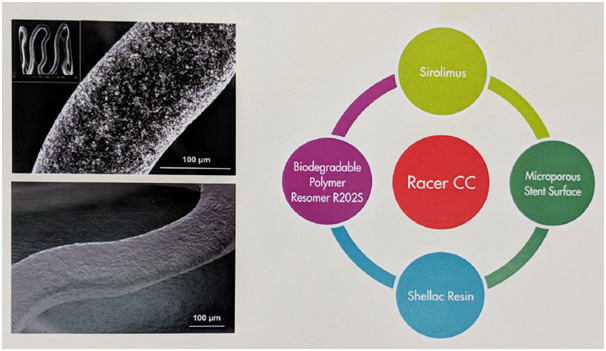

The synergy of biodegradable polymer with microporous surface
- One million pores per cm2with average depth of 2-10 µm ensures optimum drug release with minimal use of polymer.
- Drug and polymer co released In 6-9 months leaving behind Bare Metal Stent
- Drug polymer coated only on the Abluminal side using patented stent coating Technology for drug release only to target issue
- Top coat with shellac resin ensures better polymer – drug binding with negligible polymer flaking during stent expansion
Euro Intervention

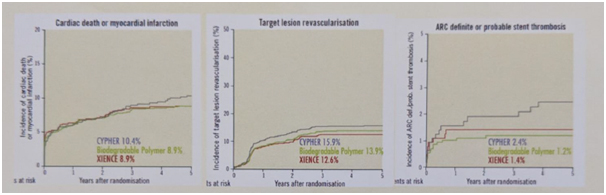

Excellent Efficacy and Long Term Safety
A total 2603 patients in randomized trial which compares Yukon, Xience and Cypher at 5 years follow up
Biodegradable Polymer Racer CC and permanent Polymer Xience stent showed Comparable clinical outcome at five years
Technical Specification
Cobalt Chromium Alloy (L605) Surface containing micro-pores
| Crossing profle (Ø 2,5 mm) | 0,035” / 0,89mm |
| Struct thickness (Ø 2,5 mm) | 0,0027” / 68 µm (SV) 0,0031” / 79 µm (MV) |
| Metallic surface area | 9,1 – 14,9% |
| Balloon marker material | Platinum / lridium |
| Entry profle | 0,016” / 0,41 mm |
| Proximal shaft diameter | 1,9 F |
| Distal shaft diameter | 2,7F |
| Recommended guide wire | 0,014” |
| Guiding Catheter | min. 5F |
Product matrix / Ordering information*
| Balloon Ø (mm) |
Stent length (mm & Article number |
|||||||||||
| 8 | 12 | 16 | 18 | 21 | 24 | 28 | 32 | |||||
| Ø 2.00 | YCFX2008 | YCFX2012 | YCFX2016 | YCFX2018 | YCFX2021 | YCFX2024 | YCFX2028 | YCFX2032 | ||||
| Ø 2.25 | YCFX2208 | YCFX2212 | YCFX2216 | YCFX2218 | YCFX2221 | YCFX2224 | YCFX2228 | YCFX2232 | ||||
| Ø 2.50 | YCFX2508 | YCFX2512 | YCFX2516 | YCFX2518 | YCFX2521 | YCFX2524 | YCFX2528 | YCFX2532 | ||||
|
Balloon Ø (mm) |
Stent length (mm) & Article number |
|||||||||||
| 8 | 12 | 16 | 18 | 21 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | |
| Ø2.75 | YCFX2708 | YCFX2712 | YCFX2716 | YCFX2718 | YCFX2721 | YCFX2724 | YCFX2728 | YCFX2732 | YCFX2736 | YCFX2744 | YCFX2744 | YCFX2748 |
| Ø 3.00 | YCFX3008 | YCFX3012 | YCFX3016 | YCFX3018 | YCFX3021 | YCFX3024 | YCFX3024 | YCFX3028 | YCFX3036 | YCFX3040 | YCFX3044 | YCFX3048 |
| Ø 3.50 | YCFX3508 | YCFX3512 | YCFX3516 | YCFX3518 | YCFX3521 | YCFX3524 | YCFX3528 | YCFX3532 | YCFX3536 | YCFX3540` | YCFX3544 | YCFX3548 |
| Ø 4.00 | YCFX4008 | YCFX4012 | YCFX4016 | YCFX4018 | YCFX4021 | YCFX4024 | YCFX4028 | YCFX4032 | YCFX4036 | YCFX4040 | YCFX4044 | YCFX4048 |
*Please contact our customer service for available sizes
Compliance chart
| Balloon Ø (mm) |
Inflation pressure (atm) |
||||||||||||||
| NP | RBP | ||||||||||||||
| 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19* | 20* | |
| Ø 2,00 | 1,83 | 1,87 | 1,90 | 1,93 | 1,96 | 2,00 | 2,03 | 2,06 | 2,10 | 2,13 | 2,16 | 2,20 | 2,23 | 2,26 | 2,29 |
| Ø 2,25 | 2,15 | 2,18 | 2,21 | 2,25 | 2,28 | 2,32 | 2,35 | 2,38 | 2,42 | 2,45 | 2,49 | 2,52 | 2,55 | 2,59 | 2,62 |
| Ø 2,50 | 2,33 | 2,36 | 2,40 | 2,43 | 2,47 | 2,50 | 2,53 | 2,57 | 2,60 | 2,64 | 2,67 | 2,70 | 2,74 | 2,77 | 2,81 |
| Ø 2,75 | 2,58 | 2,61 | 2,65 | 2,68 | 2,71 | 2,75 | 2,78 | 2,81 | 2,85 | 2,88 | 2.91 | 2,94 | 2,98 | 3.01 | 3,04 |
| Ø 3,00 | 2,81 | 2,85 | 2,89 | 2,92 | 2,96 | 3,00 | 3,04 | 3,07 | 3,11 | 3,15 | 3,18 | 3,22 | 3,26 | 3,29 | 3,33 |
| Ø 3,50 | 3,29 | 3,34 | 3,38 | 3,42 | 3,46 | 3.50 | 3,55 | 3,59 | 3,63 | 3,67 | 3,71 | 3,76 | 3,80 | 3,84 | 3,88 |
| Ø4,00 | 3,75 | 3,80 | 3,85 | 3,90 | 3,95 | 4,00 | 4,06 | 4,11 | 4,16 | 4,21 | 4,26 | 4,31 | 4,36, | 4,41 | 4,46 |
