Introducer Sheath Set
OVERVIEW
TRACK is the next generation in vascular access sheath introducers, featuring the latest hemostatic valve technology, for small to large devices.
TRACK INTRODUCER SET WITH HEMOSTATIC VALVE FEATURES
- Ergonomically designed hub
- Easy French size identification with color coded hub and 3-way stopcock
- Kink resistant and flexible sheath
- Coated sheath for smooth insertion
- Atraumatic tip of dilator provides smooth transition between dilator and sheath during insertion
- Track version available with a radiopaque atraumatic tip
- Snap fit dilator with french size indicator
- Dilator with curve memory effect for easy sheath placement
- Excellent visibility under fluoroscopy
- Complete hemostasis during insertion and withdrawal of devices

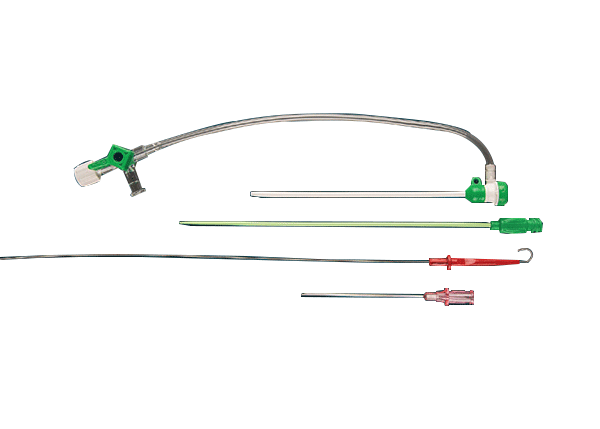

STERILE KIT CONTAINS
- One Track sheath with hemostatic valve and sideport with built-in 3 way stop cock attached to the hub
- One dilator
- One guidewire, L: 50 cm and OD: 0.035″ with a flexible straight and J tip and depth markings
- One 18G needle with protector
- One 5-10 cc syringe
ORDER INFORMATION
FEMORAL TYPE
| CODE NO. | SIZE (F) | LENGTH (CM) | NEEDLE (G) | GUIDE WIRE |
|---|---|---|---|---|
| F00015 | 4F | 9 | 18 | 0.021″ / J -END |
| F00020 | 5F | 11 | 18 | 0.035″/ J – END |
| F00024 | 6F | 11 | 18 | 0.038″ / J – END |
| F00027 | 7F | 11 | 18 | 0.038″ / J – END |
| F00029 | 8F | 11 | 18 | 0.038″ / J – END |
| F00031 | 9F | 11 | 18 | 0.038″ / J – END |
RADIAL TYPE
| CODE NO. | SIZE (F) | LENGTH (CM) | NEEDLE (G) | GUIDE WIRE |
|---|---|---|---|---|
| F00019 | 5F | 7 | 20 | 0.021″ / ST – END |
| F00023 | 6F | 7 | 20 | 0.021″ / ST – END |
| F00029 | 7F | 7 | 20 | 0.021″ / ST – END |
